Entities

Per switch

Entity Meaning
Last restart when the switch's SNMP agent started (diagnostic)
PoE budget power the switch can deliver, watts (switches with PoE)
PoE consumption power the powered devices draw, watts
Spanning tree changes how often the topology changed since the restart (off by default)
Switch events see Events

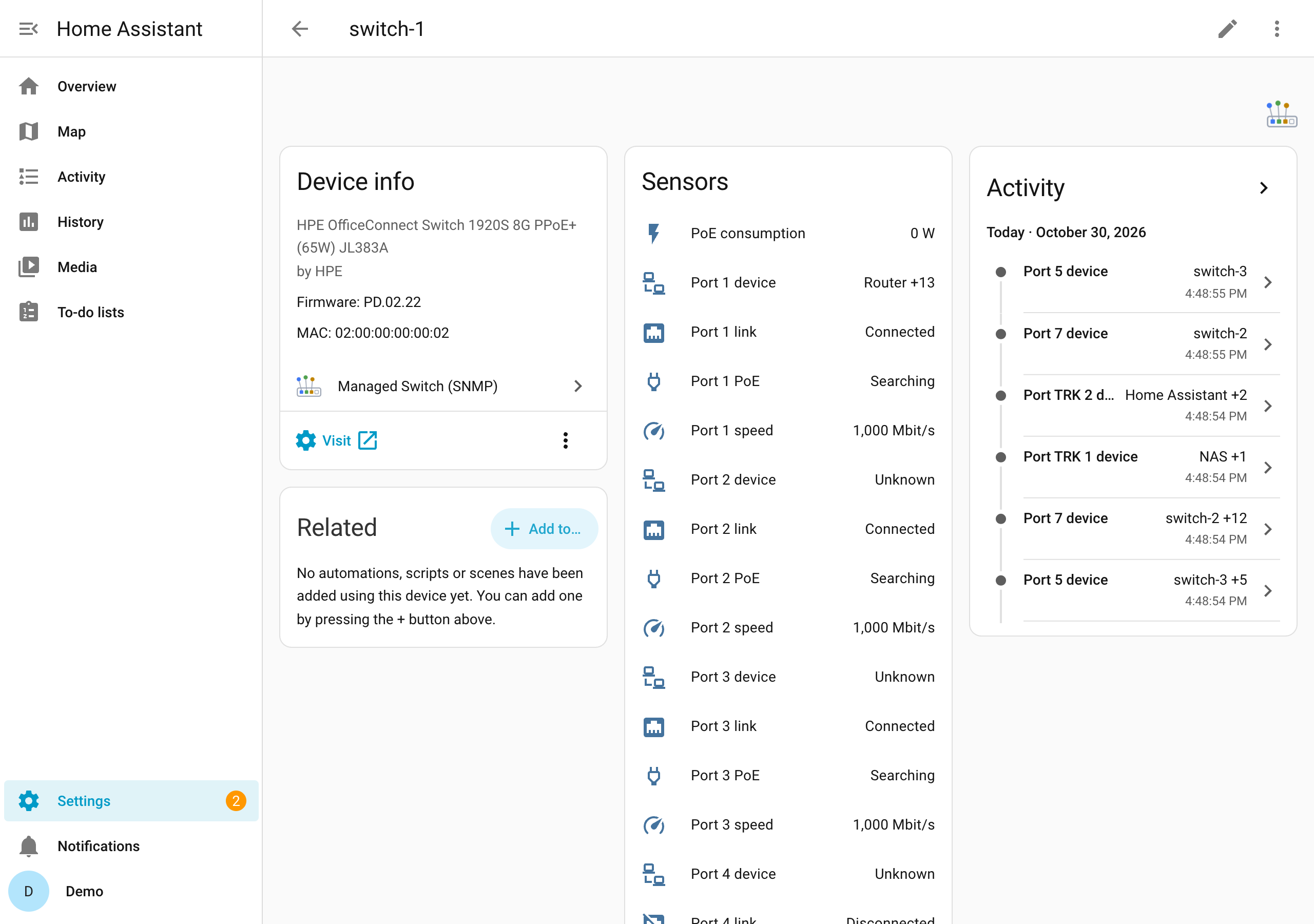

A switch's device page: PoE consumption, and per port the device, link, PoE and speed

Per port

Ports are the switch's Ethernet ports and its trunks (link aggregations) with members. Each entity is named after the port as the switch names it, for example Port 7 link or Port TRK 1 link (in German Port 7 Link, Port 7 Geschwindigkeit, Port 7 Gerät; the entity IDs follow the language Home Assistant used when they were created).

Entity Meaning
Port … link on while the port has a link
Port … speed link speed in Mbit/s, 0 without link
Port … device what is connected: see below
Port … PoE PoE state of the port: disabled, searching, delivering_power, fault, test, other_fault; attributes enabled and power_class (PoE ports only)
Port … received, sent traffic in bit/s over the last polling interval (off by default; needs 64-bit counters)
Port … errors received and sent errors since the restart (off by default)

Port … device

The state is the name of the device on the port; when there are several, the first name and how many more (Access point +8). The attribute devices lists all of them with MAC address, name, IP addresses (if a switch knows them) and whether the device announced itself by LLDP.

  • An LLDP neighbour (another switch, an access point or phone that sends LLDP) comes first, by the name it announces.
  • Other devices are named from Home Assistant's device registry: any device of another integration with that MAC address. Unknown devices show their MAC address.
  • On a port with several devices, the one that names the port best comes first: the internet gateway (the router as the UPnP integration knows it), then a device the others are linked to in the registry (an access point whose integration links its clients to it), then the rest by name. So the port to your router shows Router +13, not the first client in the alphabet.
  • Several devices on one port mean something is between: an access point with its Wi-Fi clients, a router, or an unmanaged switch.
  • The links between your switches show the other switch, not everything behind it, as long as all switches are set up.

The sensor also carries device_count, the port's port name and if_index (to sort by), link (true or false) and speed (Mbit/s), so a dashboard can show a whole port from this one entity. The device list, link and speed are not recorded in this sensor's history (link and speed have their own entities).
